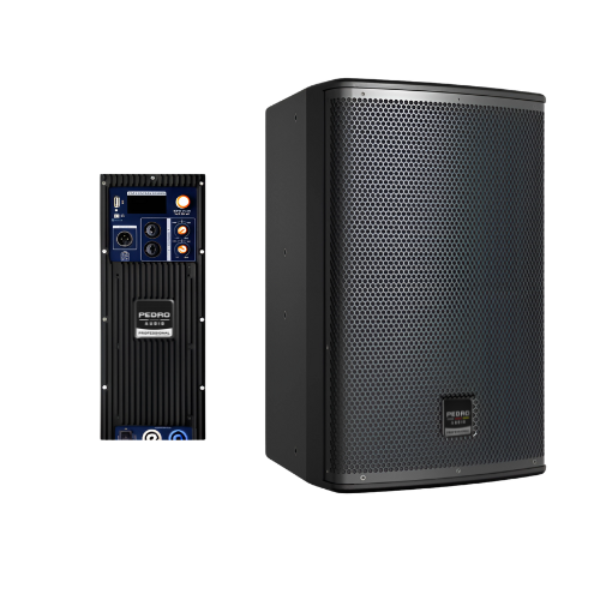

The G-512A is a premium 2.5-way active full-range speaker featuring dual 12-inch woofers, high-efficiency Class D amplification, and advanced DSP processing. Designed for powerful sound reinforcement with exceptional clarity and wide dispersion.

  • Thương hiệu:
  • Bảo hành: 24 Tháng
  • Đơn vị:
  • Trạng thái: Hàng mới 100%

Giao hàng đúng hẹn

Bảo hành chính hãng

1 Đổi 1 trong 7 ngày

Tư vấn miễn phí 24/7

Vì sao nên chọn ITC Audio

Thương hiệu uy tín trên 63 quốc gia

Nhà máy sản xuất quy mô lớn

Đội ngũ kỹ sư tay nghề cao

Sản phẩm tích hợp đa dạng

Dịch vụ bảo hành chất lượng

Thông số kỹ thuật

Thông số kỹ thuật

  • Type: Full-range powered speaker

  • Design: 2.5-way

  • Frequency Response: 45 Hz – 20 kHz

  • Maximum SPL: 130.5 dB (continuous), 136.5 dB (peak)

  • Coverage Angle (H x V): 80° x 60°

  • Low-Frequency Drivers: 2 x 12″ woofers with 3″ voice coils

  • High-Frequency Driver: 1 x 1.4″ compression driver with 2.5″ voice coil

  • Amplification Technology: 3-channel Class D amplifier with DSP

  • Power Output (RMS/Program/Peak):

    • LF: 550 W / 740 W / 1480 W

    • LFHF: 550 W / 740 W / 1480 W

    • HF: 550 W / 740 W / 1480 W

  • Dimensions (H x W x D): 590 mm x 365 mm x 410 mm

  • Net Weight: 23 kg

The G-512A full-range powered speaker delivers outstanding performance for professional sound applications including live sound, fixed installations, DJ setups, and portable PA systems. Engineered with a robust 2.5-way design, it features two 12-inch low-frequency drivers with 3-inch voice coils and a 1.4-inch high-frequency compression driver with a 2.5-inch voice coil, ensuring full-spectrum audio reproduction with tight bass and crisp highs.

G-512A Full-Range Powered Speaker

The speaker is powered by a high-efficiency Class D amplifier with three separate channels, each optimized for specific frequency bands. Integrated DSP provides advanced signal processing for precise sound tuning and protection. With a maximum sound pressure level of up to 136.5 dB and a frequency response range from 45 Hz to 20 kHz, the G-512A guarantees consistent, high-output performance in demanding environments.

The 80° x 60° (H x V) dispersion angle ensures balanced sound coverage, while the compact yet rugged enclosure makes the G-512A suitable for both mobile and fixed setups. Whether used as a main PA speaker or part of a distributed sound system, the G-512A offers superior sonic clarity, power, and reliability.

Thông số kỹ thuật

  • Type: Full-range powered speaker

  • Design: 2.5-way

  • Frequency Response: 45 Hz – 20 kHz

  • Maximum SPL: 130.5 dB (continuous), 136.5 dB (peak)

  • Coverage Angle (H x V): 80° x 60°

  • Low-Frequency Drivers: 2 x 12″ woofers with 3″ voice coils

  • High-Frequency Driver: 1 x 1.4″ compression driver with 2.5″ voice coil

  • Amplification Technology: 3-channel Class D amplifier with DSP

  • Power Output (RMS/Program/Peak):

    • LF: 550 W / 740 W / 1480 W

    • LFHF: 550 W / 740 W / 1480 W

    • HF: 550 W / 740 W / 1480 W

  • Dimensions (H x W x D): 590 mm x 365 mm x 410 mm

  • Net Weight: 23 kg
