The Midas DL16 is a high-performance digital stage box featuring 16 award-winning programmable Midas mic preamps, 8 XLR outputs, and integrated ULTRANET and ADAT connectivity – ideal for live sound, studio, and broadcast environments.

Thương hiệu:
Bảo hành: 24 Tháng
Đơn vị:
Trạng thái: Hàng mới 100%

Mr Sỹ: 0985 133 038

Mr Tuấn: 0987 185 336

Mr Sỹ: 0985 133 038

Mr Luân: 098 9672 379

Giao hàng đúng hẹn

Bảo hành chính hãng

1 Đổi 1 trong 7 ngày

Tư vấn miễn phí 24/7

Vì sao nên chọn ITC Audio

Thương hiệu uy tín trên 63 quốc gia

Nhà máy sản xuất quy mô lớn

Đội ngũ kỹ sư tay nghề cao

Sản phẩm tích hợp đa dạng

Dịch vụ bảo hành chất lượng

Thông số kỹ thuật

Inputs:
- 16 x XLR (Mic/Line) with programmable Midas mic preamps
- +48V Phantom Power (individually switchable)
Outputs:
- 8 x XLR (Analog Balanced)
- 1 x 1/4” TRS (Headphone Out, Mono)
Digital Audio Interfaces:
- 2 x AES50 Ports (SuperMAC) for redundant or cascaded operation
- 2 x ADAT Optical Outputs (Channels 1–8, 9–16)
- 1 x ULTRANET Output (RJ45) for P16 Personal Monitoring System
Conversion:
- 24-bit A/D and D/A
- Sample Rate: 44.1/48kHz
Performance:
- Dynamic Range: >114 dB (A-weighted)
Control & Integration:
- Fully remote-controllable via compatible Midas/Behringer consoles
- Automatic channel configuration via AES50 detection
- Remote gain, phantom power, and monitoring
Connectivity:
- Remote control over standard CAT5e cable (up to 100m)
- Dual AES50 ports for flexible routing and redundancy
Physical:
- Form Factor: 2U Rackmount
- Rugged steel chassis for touring durability

Catalog

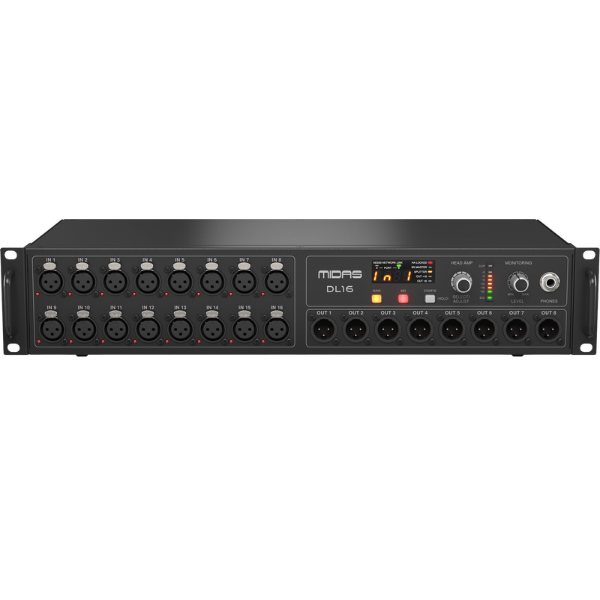

Midas DL16

The DL16 brings Midas’ legendary audio performance to the stage with 16 premium-quality, remote-controllable microphone preamplifiers and 8 balanced XLR outputs in a rugged, road-ready 2U rack format. Engineered for seamless integration with digital mixing consoles via AES50 (SuperMAC) protocol, the DL16 offers ultra-low latency audio transmission over standard CAT5 cables – supporting distances up to 100 meters.

Midas DL16

Designed to expand your input/output flexibility, the DL16 is ideal for front-of-stage or drum riser deployment, reducing cable clutter and streamlining setup. With 24-bit A/D and D/A conversion at 44.1/48kHz, a dynamic range exceeding 114dB, and support for cascading via dual AES50 ports, the DL16 becomes a powerful hub in any digital mixing environment.

The built-in ULTRANET port enables direct connection to Behringer P16-M personal monitoring systems, offering each musician tailored control of their monitor mix. In addition, the integrated ADAT outputs provide digital interfacing with compatible recording gear or outboard processors, enhancing the system’s versatility in both live and studio applications.

Thông số kỹ thuật

Inputs:
- 16 x XLR (Mic/Line) with programmable Midas mic preamps
- +48V Phantom Power (individually switchable)
Outputs:
- 8 x XLR (Analog Balanced)
- 1 x 1/4” TRS (Headphone Out, Mono)
Digital Audio Interfaces:
- 2 x AES50 Ports (SuperMAC) for redundant or cascaded operation
- 2 x ADAT Optical Outputs (Channels 1–8, 9–16)
- 1 x ULTRANET Output (RJ45) for P16 Personal Monitoring System
Conversion:
- 24-bit A/D and D/A
- Sample Rate: 44.1/48kHz
Performance:
- Dynamic Range: >114 dB (A-weighted)
Control & Integration:
- Fully remote-controllable via compatible Midas/Behringer consoles
- Automatic channel configuration via AES50 detection
- Remote gain, phantom power, and monitoring
Connectivity:
- Remote control over standard CAT5e cable (up to 100m)
- Dual AES50 ports for flexible routing and redundancy
Physical:
- Form Factor: 2U Rackmount
- Rugged steel chassis for touring durability
